Place: Home-->Product : Ferrite
Core - UYF Type Core |

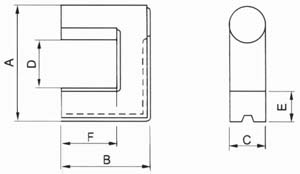

Dimensions and Magnetic Parameters |
![](uyf.jpg)
|
TYPE |
DIMENSIONS(mm) |
EFFECTIVE PARAMETER |
WEIGHT
(g) |
A |
B |
C |
D(min) |
E |
F |
C1 |
Le |
Ae |
Ve |
(mm-1) |
(mm) |
(mm2) |
(mm3) |
UYF10 |
30.4¡À0.5 |
30.0¡À0.3 |
10.0¡À0.3 |
11.7 |
8.15¡À0.3 |
21.6¡À0.3 |
1.85 |
136.8 |
75.9 |
10388.3 |
52 |
UYF12 |
37.0¡À0.6 |
35.0¡À0.3 |
12.0¡À0.3 |
15.8 |
8.4¡À0.3 |
25.0¡À0.3 |
1.6 |
162.6 |
104.6 |
17013.7 |
84 |
UYF13A |
35.4¡À0.5 |
30.5¡À0.3 |
13.0¡À0.3 |
12.0 |
9.8¡À0.3 |
20.5¡À0.3 |
1.1 |
139.4 |
125.0 |
17355.4 |
89 |
UYF13B |
38.0¡À0.6 |
33.0¡À0.3 |
13.0¡À0.3 |
13.8 |
10.7¡À0.3 |
22.0 |
1.17 |
151.4 |
132.8 |
20109 |
95 |
UYF13C |
33.5¡À0.7 |
30.5¡À0.3 |
13.0¡À0.3 |
11.5 |
8.4¡À0.3 |
20.5¡À0.3 |
1.2 |
135.9 |
115.7 |
15721.9 |
78 |
UYF13D |
37.2¡À0.5 |
31.5¡À0.3 |
13.0¡À0.3 |
15.0 |
8.5¡À0.3 |
21.5¡À0.3 |
1.26 |
148.1 |
117.7 |
24635 |
84 |
UYF14A |
42.7¡À0.7 |
33.8¡À0.3 |
14.0¡À0.3 |
16.75 |
11.5¡À0.3 |
22.3¡À0.3 |
1.05 |
160.7 |
153.3 |
24634.9 |
115 |
UYF14B |
40.8¡À0.7 |
34.3¡À0.3 |
14.5¡À0.3 |
13.8 |
12.0¡À0.3 |
22.3¡À0.3 |
0.96 |
156.5 |
163.5 |
25587 |
132 |
UYF14C |
40.0¡À0.6 |
35.0¡À0.3 |
14.0¡À0.3 |
15.0 |
10.4¡À0.4 |
23.9¡À0.3 |
1.14 |
162.1 |
145.7 |
23617.5 |
120 |
UYF14D |
39.5¡À0.5 |
34.3¡À0.3 |
14.0¡À0.3 |
14.0 |
10.4¡À0.4 |
23.4¡À0.2 |
1.14 |
158.8 |
144.9 |
23005.1 |
117 |
UYF14E |
38.5¡À0.5 |
34.3¡À0.3 |
14.0¡À0.3 |
13.8 |
10.4¡À0.4 |
23.4¡À0.2 |
1.14 |
156.8 |
144.9 |
22715.9 |
112 |
UYF14.5 |
43max |
34.5¡À0.3 |
14.5¡À0.3 |
15.8 |
12.0¡À0.4 |
22.5¡À0.3 |
0.99 |
161.7 |
163 |
26357 |
137 |
UYF14.7 |
42.0¡À0.7 |
34.2¡À0.3 |
14.7¡À0.4 |
14.5 |
12.0¡À0.4 |
22.5¡À0.3 |
0.975 |
159.0 |
163 |
25917 |
134 |
UYF15A |
42.3¡À0.5 |
35.3¡À0.3 |
15.0¡À0.3 |
15.0 |
11.8¡À0.4 |
23.3¡À0.3 |
0.95 |
163.1 |
171 |
27890 |
143 |
UYF15B |
42.0¡À0.6 |
37.5¡À0.3 |
15.0¡À0.3 |
14.2 |
11.8¡À0.4 |
25.5¡À0.3 |
1.0 |
171.3 |
171 |
29292 |
145 |
UYF15C |
46.0¡À0.8 |
27.5¡À0.3 |
15.0¡À0.3 |
18.4 |
12.0¡À0.3 |
15.5¡À0.3 |
0.82 |
139.1 |
170 |
23647 |
152 |
UYF16A |
48.0¡À0.5 |
39.8¡À0.3 |
16.0¡À0.3 |
18.0 |
13.2¡À0.4 |
26.5¡À0.3 |
0.76 |
176.1 |
201 |
35396 |
192 |
UYF16B |
43.0¡À0.6 |
38.9¡À0.3 |
16.0¡À0.3 |
14.6 |
11.9¡À0.4 |
26.0¡À0.3 |
0.91 |
173 |
190 |
32870 |
160 |
UYF16C |
41.9¡À0.6 |
37.2¡À0.3 |
16.0¡À0.3 |
13.8 |
12.0¡À0.4 |
25.2¡À0.4 |
0.87 |
166 |
189.8 |
31506.8 |
165 |
UYF17B |
46.6¡À0.6 |
38.5¡À0.3 |
16.7¡À0.2 |
16.0 |
13.2¡À0.4 |
25.5¡À0.3 |
0.87 |
177.2 |
202.9 |
35953.9 |
188 |
UYF17C |
46.0¡À0.5 |
37.5¡À0.3 |
16.5¡À0.3 |
15.2 |
13.2¡À0.4 |
24.5¡À0.3 |
0.87 |
173.5 |
199.6 |
34630.6 |
185 |
UYF18A |
48.4¡À0.6 |
39.8¡À0.3 |
18.0¡À0.4 |
15.5 |
14.5¡À0.4 |
25.0¡À0.4 |
0.7 |
179.8 |
255.2 |
45872.3 |
210 |
¡¡ |
