Core - I Type Core |

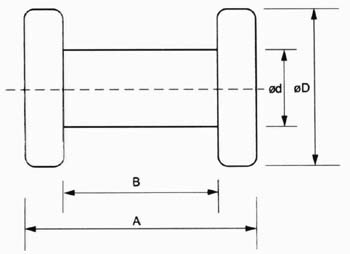

| Dimensions and Magnetic Parameters |
| TYPE |
DIMENSIONS(mm) |
WEIGHT
(g) |
| ØD |
Ød |
A |
B |
| I6x2.8x8 |
6.0¡À0.15 |
2.8¡À0.15 |
8.0¡À0.3 |
4.0¡À0.3 |
0.7 |
| I8x3.5x9 |
8.0¡À0.2 |
3.5¡À0.2 |
9.0¡À0.5 |
3.5¡À0.5 |
1.5 |
| I9x3.8x13 |
9.0¡À0.2 |
3.8¡À0.2 |
13.0¡À0.4 |
8.0¡À0.4 |
1.7 |
| I10x3.8x11 |
10.0¡À0.3 |
3.5¡À0.3 |
11.0¡À0.7 |
6.0¡À0.5 |
2.2 |
| I12x5.2x16 |
12.0¡À0.3 |
5.2¡À0.25 |
16.0¡À0.5 |
10.0¡À0.3 |
4.3 |
| I13Bx5x19 |
13.0¡À0.3 |
5.0¡À0.25 |
15.25¡À0.4 |
10.2¡À0.3 |
3.7 |
| I14x5x15 |
14.0¡À0.3 |
5.0¡À0.25 |
15.0¡À0.7 |
9.0¡À0.5 |
5.3 |
| I14Ax5.3x15 |
14.0¡À0.3 |
5.3¡À0.25 |
14.9¡À0.4 |
10.3¡À0.3 |
4.5 |
| I14Bx8x19 |
14.0¡À0.3 |
8.0¡À0.3 |
19.0¡À0.4 |
14.0¡À0.3 |
13.3 |
| I16x10x18 |
16.0¡À0.3 |
10.0¡À0.3 |
18.0¡À0.4 |
13.0¡À0.4 |
9.8 |
| I18x10.5x22 |
18.0¡À0.4 |
10.5¡À0.5 |
22.0¡À0.5 |
16.4¡À0.5 |
14.0 |
¡¡ |
