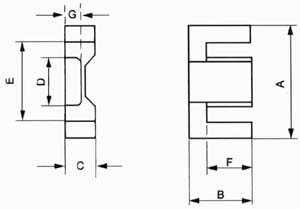

  Dimensions and Magnetic Parameters

TYPE DIMENSIONS (mm) EFFECTIVE  PARAMETER WEIGHT
(g)
A B C D E F G C1 Le Ae Ve
(mm-1) (mm) (mm2) (mm3)
EFD15 15.0¡À0.4 7.5¡À0.15 4.65¡À0.16 5.3¡À0.15 11.0¡À0.35 5.5¡À0.25 2.4¡À0.1 2.27 34 15 510 6.8
EFD20 20.0¡À0.55 10.0¡À0.25 6.65¡À0.3 8.9¡À0.2 15.4¡À0.5 7.7¡À0.25 3.6¡À0.2 1.52 47 31 1460 7.4
EFD25 25.0¡À0.65 12.5¡À0.25 9.1¡À0.2 11.4¡À0.2 18.7¡À0.6 9.3¡À0.25 5.2¡À0.25 1 57 58 3300 16.5
EFD30 30.0¡À0.8 15.0¡À0.25 9.1¡À0.3 14.6¡À0.3 22.4¡À0.75 11.2¡À0.3 4.9¡À0.2 0.98 68 69 4700 24

¡¡
